页面路由
该节点允许你在页面中,可以使用导航节点 或 导航到路径 节点进行页面之间的跳转. 你还可以使用 外部链接 导航到应用程序之外的页面。
与类似的 组件堆栈 节点不同, 页面路由 节点针对 Web 类型的导航进行了优化,并使用 URL 和路由作为导航的一部分,同时也使用浏览器历史记录。
每个 页面路由节点都有一个 起始页面。页面在 页面路由节点内部进行渲染, 你可以使用 剪辑行为 选项来决定 页面路由 节点如何包装其他内容。
实现
页面路由 节点使用标准的浏览器导航,这意味着用户可以使用浏览器的 返回 按钮在 页面路由 节点的历史记录中导航回去。
请注意 页面路由 仅在 页面 之间导航 无法通过节点选取器创建页面。您可以使用 侧边栏组件 中的 创建页面 来创建它们。
请注意,页面路由节点只在页面页面之间进行导航。页面 无法通过节点选择器创建。你需要使用组件侧边栏中的创建页面 创建页面 来创建它们。
创建 页面 后,它们会自动添加到你的 页面路由 节点中,除非你的项目中有多个 页面路由 节点。在这种情况下,你需要手动将它们添加到相应的位置。
起始页面

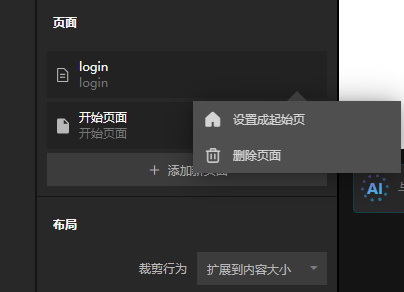

在创建和添加页面到你的 页面路由 节点时,你需要通过打开 页面路由 节点属性中的页面项目菜单,并选择 设为起始页面 属性来将其中一个页面设置为起始页面。
导航
页面路由和页面的URL
CIDE 使用 URL 来将 页面路由 节点路由到特定的 页面。页面路由 节点可以选择具有URL路径 URL Path。每个页面也有一个URL路径 URL Path,用于唯一标识到该页面的 URL 路由。
通常,页面的路由如下所示:
<domainname>#/<route1>/<route2>/<route3>...
其中 域名
是你托管应用程序的域名,每个 路由
指向 页面路由 节点或页面。路由
还可以包括页面参数 页面参数 和 查询参数(见下文)。
例如,具有URL路径(URL Path)为'myrouter'的 页面路由 节点,具有两个可 能的URL路径 URL Path 为 page1 和 page2 的页面,将有两个可能的路由:myrouter/page1
和 #myrouter/page2
。请注意,始终在路由的开头添加 '#' 字符。例如,如果 CIDE 应用程序部署在域名为 app.mytuolaapps.com
的域上,输入https://app.mytuolaapps.com#myrouter/page2
将导航到具有URL路径 URL Path 为 page2 的 页面 的 页面路由 节点。
使用导航节点进行导航
在应用程序中在页面之间导航的最直接的方法是使用 导航节点。该节点将导航到导航节点中选择的 页面。这将更新浏览器的 URL 以指向该页面的路由。还有一个导航到路径 导航到路径节点,允许设置一个明确的路径,例如通过指定完整的 URL 路径同时在多个 页面路由 节点上执行导航。
多个页面路由节点
如果需要,你可以同时使用多个 页面路由 节点。这可以用于在更高级别的导航流程中具有多个导航流。例如,你可以在顶级导航中有页面 Home、Settings 和 Content,并在每个页面中有子导航,进入每个部分下的特定页面。
在URL中编码参数
页面输入 节点用于通过将参数编码在 URL 中在页面之间传递参数。例如,如果您希望某些输入参数在页面上始终可用,而不管应用程序的状态如何,这将非常有用。例如,用户可能会在浏览器中点击“刷新”按钮。由于参数被编码在 URL 中,它们仍然可以通过 页面输入
节点在 页面
中使用。
将参数编码在 URL 中的另一个情况是为了让用户能够共享一个链接,链接到您应用程序中的特定位置,并设置特定的参数。
有两种类型的参数,即路径参数 路径参数 和查询参数 查询参数。路径参数 只能有一个,而 查询参数 可以有任意多个。
路径参数
路径参数 会添加到 页面 的路由末尾。例如,具有 URL路径 为 mypage
的页面,并定义了一个 路径参数,将期望路由的下一部分是该参数的值。路由mypage/monkey
将导致 页面 的 路径参数 获取值 monkey
。使用 路径参数 是一种方便的方式,用于对特定的数据条目进行预填充。例如,路径参数 可以是记录的 ID。
查询参数
查询参数 使用 ?parameter=value
的格式在 URL
中进行编码。你可以有任意数量的 查询参数。
可视外观
页面路由 节点是一个可视节点。它会自动展开以占据当前布局中的所有可用空间,除非其剪辑行为 剪裁行 为 设置为展开到内容大小 展开到内容大小 ,此时它的大小与其正在显示的 页面 相同(如果可用)。
输入
属性 | 描述 |
---|---|
名称 | 页面路由 节点的名称。如果你有多个 页面路由 节点,名称将用于标识它们。 |
跳转路径 | 在将 URL 路由到 页面路由 节点时,可选的页面路由节点路径。 |
裁剪行为 | 此属性控制 页面路由 节点的大小和剪辑行为。它有三个可能的值:展开到内容大小 扩展到内容大小、滚动 或剪辑内容 裁剪内容。 展开到内容大小 扩展到内容大小 :将 页面路由 节点的大小更改为适应当前显示的页面的大小。滚动(Scroll) :使页面路由节点尽可能占据空间。如果无法适应 页面路由 节点内部的任何页面,则可以滚动它们。 |
背景颜色 | 当没有覆盖 页面路由 节点的 页面, 页面 是透明时显示的颜色。 |
装载 | 此属性用于完全从 DOM 中删除节点。如果此属性设置为 false,则从 DOM 中删除节点。它与“可见(Visible)”属性不同,后者仍然是 DOM 的一部分,但是不可见。 |
信号 | 描述 |
---|---|
重置 | 触发此操作将重置 页面路由 节点,使其显示起始页面。 |
可视化
输出
属性 | 描述 |
---|---|
当前页面标题 | 当前显示在此 页面路由 器中的页面的标题。 |
当前页面组件 | 当前显示在此 页面路由 器中的组件。 |
可视化
此节点支持以下 可视化输出属性:
Visual Input Properties
All visual nodes feature a plethora of visual properties that can be accessed both in the Property Panel and through inputs. These are documented below. Plese refer to the individual node documentation pages to see which nodes feature what visual properties.
Margin
Margins are the spacings around the node, outside of the borders. The margins for the node can be set individually in the Spacing Gadget.
| Data | Description |
| ----------------------------------------------- | ------------------------------------------------------- |
| Margin Left | The left margin in px
, or %
of the parents width. |
| Margin Right | The right margin in px
, or %
of the parents width. |
| Margin Top | The top margin in px
or, %
of the parents width. |
| Margin Bottom | The bottom margin in px
, or %
of the parents width. |
Padding
Paddings are the spacings around the nodes content, inside of the borders. The margins for the node can be set individually in the Spacing Gadget.
| Data | Description |
| ------------------------------------------------ | -------------------------------------------------------- |
| Padding Left | The left padding in px
, or %
of the parents width. |
| Padding Right | The right padding in px
, or %
of the parents width. |
| Padding Top | The top padding in px
or, %
of the parents width. |
| Padding Bottom | The bottom padding in px
, or %
of the parents width. |
Alignment
To specify how the node is aligned to its parent you can use the Alignment Gadget.
From left to right, the alignment options are:
| Data | Description | | --------------------------------------------------------- | ------------------------------------------------------- | | Align Bottom | Align this node to the bottom of its parent. | | Align Vertical Center | Align this node to the bottom of its parent. | | Align Top | Align this node to the top of its parent. | | Align Left | Align this node to the left side of its parent. | | Align Horizontal Center | Align this node to the horizontal center of its parent. | | Align Right | Align this node to the right of its parent. |
Connection Values
When making a connection to the layout property, the values are a little different than the ones in the dropdown. Here is a list of the values, that should be passed in:
| Display Name | Value |
| ----------------------- | -------- |
| Align Bottom | bottom
|
| Align Vertical Center | center
|
| Align Top | top
|
| Align Left | left
|
| Align Horizontal Center | center
|
| Align Right | right
|
Dimensions
Controling the width and height of the node is done with the Dimension Gadget.
The first four controls the Size Mode of the node. It decides how the width and height of the node is specified. From left to right, the options are:
| Data | Description | | ---------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------- | | Explicit width and height | Set the width and height directly in pixels or percentage. Percentage is in relation to the parent, so 100% is the same size as the parent. | | Explicit height, Content Width | The node will calculate the width to fit all of its children. The height is explicitly set. | | Explicit width, Content Height | The node will calculate the height to fit all of its children. The width is explicitly set. | | Content Size | Both the width and the height is calculated to fit all of the node's children. |
The other properties are:
| Data | Description |
| ---------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Width | Specify the width of this node in pixels, percentage of parent's width or the unit vw
which is percentage of the browser window width. |
| Height | Specify the height of this node in pixels, percentage of parent's height or the unit vw
which is percentage of the browser window height. |
| Fixed | Controls if an element will try to resize and share space with siblings without going outside of the bounds of the parent.
If Fixed is enabled, the element will be the exact specified size. If it is disabled, the element will resize to fill up empty space, or shrink to make space for siblings. |
You can use the Dimension Contstraints Gadget to set a min and/or a max size for the node.
Layout
The supported properties of the Layout Gadget can be very different depending on the node. All possible properties are listed below.
• Position
Controls the layout of this node is in its parent group.
| Option | Description |
| ------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| In Layout | This node is part of the parent group layout, it will be stacked with its siblings depending on the parent group layout settings. |
| Absolute | This node will not be part of the parent group layout, instead you are free to use the Pos X
and Pos Y
to place this node explicitly. |
| Sticky | Behaves like In Layout, except when the node is about the be scrolled outside the parent. It'll stick to an edge of the parent instead of scrolling away. The edge it sticks to can be controlled with the Alignment input. |
• Layout Direction
By default all children are stacked. This property specifies the stacking direction.
| Data | Description | | -------------------------------------------- | ---------------------------------- | | Vertical | Children are stacked vertically. | | Horizontal | Children are stacked horizontally. | | None | Children are not stacked. |
When making a connection to the layout property, the values are a little different than the ones in the dropdown. Here is a list of the values, that should be passed in:
| Display Name | Value |
| ------------ | -------- |
| Vertical | column
|
| Horizontal | row
|
| None | none
|
• Multi Line Wrap
This property specifies what happens with children that are stacked outside of the border of the node.
| Data | Description | | -------------------------------------------- | ------------------------------------------------------------------------------------------------------ | | Off | Children are stacked beyond the boundaries of the node. If Clip is enabled they will not be visible. | | On | Children are wrapped to the next row or column (depending on layout direction). | | On Reverse | Same as On but opposite layout direction. |
• Gap
This property is used to add spacing between children in the group.
| Data | Description | | ------------------------------------------------ | --------------------------------------------------------------------------------------------------------- | | Vertical Gap | Vertical space between children. Shown if Layout is set to Vertical or Multi Line Wrap is On. | | Horizontal Gap | Horizontal space between children. Shown if Layout is set to Horizontal or Multi Line Wrap is On. |
• Clip content
This property controls if elements that are too big to fit inside the node will be clipped.
If disabled, a group will always expand to contain all of its children. So if the children are taller than the size of the group, the group will expand and be larger than its specified size.
Align and justify content
This Gadget controls how children are aligned and justified by default. Children can override these settings with their Alignment input.
The first set of options control cross-axis alignment, meaning vertical alignment for horizontal layouts, and horizontal alignment for vertical layouts. From left to right, the options are:
| Option | Description | | ---------------------------------------------------- | ------------------------------------------------- | | Align items start | Children are stacked at the start of the parent. | | Align items center | Children are stacked at the center of the parent. | | Align items end | Children are stacked at the end of the parent. |
The second set of options control alignment in the same direction as the layout. From left to right, the options are:
| Option | Description | | --------------------------------------------------------------- | --------------------------------------------------------------------------------------------------- | | Justify content start | Children are stacked at the start of the parent. | | Justify content center | Children are stacked at the center of the parent. | | Justify content end | Children are stacked at the end of the parent. | | Justify content space between | Children are evenly distributed. No space is added between the parent and the first and last child. | | Justify content space around | Children are evenly distributed. Space is added between the parent and the first and last child. | | Justify content space evenly | Children are evenly distributed with equal space between them. |
Scroll
This Gadget controls how scrolling should be handled within the node.
| Data | Description | | ----------------------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Enable Scroll | This specifies if the node should have scrolling enabled for children that overflow outside of the nodes boundaries. Scrolling direction is determined by the nodes Layout direction. Enabling this will show the scrolling properties below. |
| Data | Description | | -------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | | Native Platform Scroll | When enabled, uses the web's native scrolling dependent on the platform. Uses custom CIDE scrolling when disabled. The custom CIDE scrolling is platform independent and has both touch and mouse support. | | Show Scrollbar | Only available if Native Platform Scroll is disabled. Toggles the visibility of the scrollbar. | | Bounce at boundaries | Only available if Native Platform Scroll is disabled. Toggles if scrolling bounces when you are at top or bottom of list. | | Snap | Only available if Native Platform Scroll is disabled. Enabling this will snap the scrolling between every screen. | | Snap To Every Item | Only available if Snap is enabled. Enabling this will force the scrolling to snap to individual items. |
Text Style
| Data | Description |
| ------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| Text Style | Set an existing text style to this node, or create a new text style from the current properties. |
| Font Family | The font family of the text to display. Choose a font in the project folder or type font name. |
| Font Size | The size of the font of the text to be displayed, in px
. |
| Color | The color of the text to be displayed. |
| Letter spacing | The distance between letters in the string to be displayed. Can be specified in the following units: px
: Pixels. This is CSS pixels, so one pixel will be two physical pixels on a retina displayem
: Relative to the font size. 1em is the same as the current font size |
| Line height | The line height of the string, if the string is on multiple lines. Can be specified in the following units:
No unit
: Relative to the current font size. Preferred way to set line height px
: Pixels. This is CSS pixels, so one pixel will be two physical pixels on a retina display %
: Percentage |
| Case | Control how to capitalize the text: None
: Characters are unmodifiedUppercase
: All characters will be uppercaseLowercase
: All characters will be lowercaseCapitalize
: The first letter of each word will be converted to uppercase |
Style
This Gadget controls basic styling of the node.
| Data | Description |
| -------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| Opacity | The opacity of the node. 0 is completely transparent and invisible. 1 is completely solid and opaque. |
| Background Color | Specifies the background color for this node. |
| Visible | Toggle the visibility of this node on and off. |
| zIndex | The depth index for this node, this can be any number. |
| Blend Mode | Controls how this element should blend with the elements behind it. The blend mode can be set to one of the following: Multiply
Normal
Screen
Overlay
Darken
Lighten
Color Dodge
Color Burn
Hard Light
Soft Light
Difference
Exclusion
Hue
Saturation
Color
Luminosity
|
Border Style
The Border Style Gadget is used to style the borders.
You can select to style all borders at once, or only style individual borders. The styling for the individual borders will override the all-borders option.
| Data | Description |
| ---------------------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------- |
| Border Style | Specifies whether this node should have a border and what it should look like. The options are None
, Solid
, Dotted
and Dashed
. |
| Border Width | The width of the border. Only available if Border Style is set to have a border. |
| Border Color | The color of the border. Only available if Border Style is set to have a border. |
Corner Radius
The Corner Radius Gadget is used to round the corners of the node.
You can select to set the corner radius all corners at once, or only style individual corners. The styling for the individual corners will override the all-corners option.
The corner radius is specified in px
or %
of the nodes width.
Box Shadow
You use the Box Shadow Gadget to set the shadow behind or inside of the node.
| Data | Description | | ------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Shadow Enabled | Enables and disables the shadow. | | Offset X | The horizontal offset of the shadow. A positive value puts the shadow on the right side of the node, a negative value puts the shadow on the left side of the node. | | Offset Y | The vertical offset of the shadow. A positive value puts the shadow below the node, a negative value puts the shadow above node. | | Blur Radius | The blur radius. The higher the number, the blurrier the shadow will be. | | Spread Radius | The spread radius. A positive value increases the size of the shadow, a negative value decreases the size of the shadow. | | Inset | Changes the shadow from an outer shadow (outset) to an inner shadow. | | Shadow Color | The color of the shadow. |
Placement
The Placement Gadget lets you offset, rotate and scale the node. It uses CSS Transforms under the hood, meaning that the nod will still take up the original size and position in the visual tree.
| Data | Description | | ---------------------------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Pos X | The X position of the node. Either relative to its parent top left corner or relative to its layout position depending on the Position property. Can be specified in pixels or as a percentage of its parent's width. | | Pos Y | The Y position of the node either relative to its parent's top left corner or relative to its layout position depending on the Position property. Can be specified in pixels or as a percentage of its parent's height. | | Rotation | The rotation in degrees. | | Scale | Specifies scaling of this node. A value of 0 scales the node down completely so that it is no longer be visible. A value of 1 gives it the original size, and a value of 2 doubles the size and so on. | | Transform Origin X | Specifies the X position, within this node, that will be the center for rotation and scale. By default it is the center of the node (i.e. 50%) but you can specify an arbitrary value in either percentage of the node's width or explicitly in pixels. | | Transform Origin Y | Specifies the Y position, within this node, that will be the center for rotation and scale. By default it is the center of the node (i.e. 50%) but you can specify an arbitrary value in either percentage of the node's height or explicitly in pixels. |
Dimension Constraints
The Dimension Constraints Gadget allows you to clamp the values of the Dimensions Gadget.
| Data | Description | | -------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------- | | Min Width | The minimum width that can be assumed by growing with children or parent. Can be specified in % or pixels, or vw which is percentage of window width. | | Max Width | The maximum width that can be assumed by growing with children or parent. Can be specified in % or pixels, or vw which is percentage of window width. | | Min Height | The minimum height that can be assumed by growing with children or parent. Can be specified in % or pixels, or vh which is percentage of window height. | | Max Height | The maximum height that can be assumed by growing with children or parent. Can be specified in % or pixels, or vh which is percentage of window height. |
Focus
| Signal | Description | | ----------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------- | | Focus | Focuses this node. Will trigger the Focused signal output on this node, as well as Focused Lost on other nodes that now lost focus. |
Other
| Data | Description |
| -------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Pointer Events Mode | This specifies how this node responds to pointer events.Inherit
sets the node to respond to pointer events in the same way as its parent.Explicit
sets the node to respond to pointer events as specified by Pointer Events Enabled. |
| Pointer Events Enabled | This property is only available if Pointer Events Mode is set to Explicit. It will specify if this node responds to pointer events or not. If set to false this node will completely ignore pointer events. |
| Block Pointer Events | This will cause this node to block all pointer events, e.g. any node that is behind this node will not receive pointer events. |
| Mounted | This property is used to completely remove the node from the DOM. If this property is set to false the node is removed from the visual tree. It differs from the Visible property where the node is still part of the visual tree but invisible. |
Advanced HTML
| Data | Description | | ------------------------------------------- | --------------------------------------------------------------------------------------------------- | | Tag | The tag used when this node renders in the app. Only available on the Group and Text nodes. | | CSS Class | Specify a CSS class this node will have. | | CSS Style | Use this property to specify your custom CSS. |
视觉节点输出属性
Scrolling
| Data | Description | | ------------------------------------------------- | -------------------------------------------- | | Scroll Position | The current position of scrolling in pixels. |
| Signal | Description | | ------------------------------------------------ | ------------------------------------- | | Scroll Start | Signal emitted when scrolling starts. | | Scroll End | Signal emitted when scrolling ends. |
Bounding Box
| Data | Description |
| --------------------------------------------------- | ------------------------------------------------------------------------------------------- |
| Screen Position X | Where this node is on the screen's X-axis, in px
. |
| Screen Position Y | Where this node is on the screen's Y-axis, in px
. |
| Width | Current width of this node. |
| Height | Current height of this node. |
Mounted
| Signal | Description | | ------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------- | | Did Mount | Signal sent when this node has been mounted, i.e. has become part of the visual tree and is visible. | | Will Unmount | Signal sent when this node is about to be removed from the visual tree and become hidden. |
Pointer Events
| Signal | Description | | ------------------------------------------------- | --------------------------------------------------------------------- | | Click | Triggered when the node is clicked or tapped. | | Pointer Down | Triggered when the mouse is pressed or finger is down on the node. | | Pointer Up | Triggered when the mouse is released or finger is lifted on the node. | | Pointer Enter | Triggered when the mouse enters the node. |
Hover Events
| Signal | Description | | ----------------------------------------------- | ----------------------------------------- | | Hover Start | Triggered when the mouse enters the node. | | Hover End | Triggered when the mouse leaves the node. |
Focus
| Signal | Description | | ------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------- | | Focused | Triggered when the node, or one if its descendants, is clicked, or if the Focused input is triggered. | | Blurred | Triggered when this node had focus and another node gained focus. Focus is only lost if the new focused node is not a descendant. |
Other
| Data | Description |
| ------------------------------------------------ | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Child Index | The place this node has in relation to its parent. E.g. if a Group has three children, then the first child will have Child Index 0
, the second child will have Child Index 1
, and so on. |
| This | A reference to this node. Used in custom JavaScript nodes and more. |
| Children Count | Outputs the number of children that this node has (if the node supports children). |
